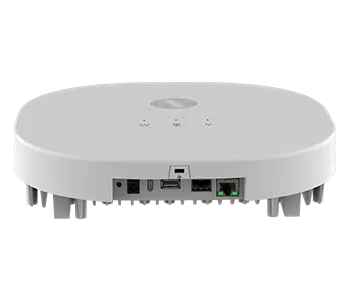

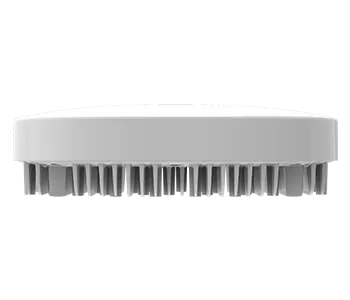

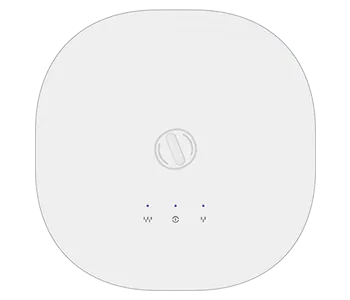

Wi-Fi 6 Indoor Access Point | ion12xi_h2

Dual Band 8x8:8 Indoor Access Point with Integrated Antenna (6 dBi) [DC & PoE powered]

High-Density Wi-Fi 6 Indoor Access
Point for Performance That Scales

The ion12xi_h2 Wi-Fi 6 access point is purpose-built for high-density indoor environments like auditoriums, stadiums, airports, and large malls. With dual-band 8x8:8 and integrated antenna, this Wi-Fi access point delivers expansive coverage, ultra-fast speeds, and seamless performance.

Whether powering interactive lectures in education auditoriums, enabling digital payments in high-footfall retail zones, supporting immersive experiences in indoor arenas, or ensuring smooth connectivity for banquets and conferences in hospitality venues, this indoor wireless access point guarantees uninterrupted, high-performance Wi-Fi.

Radio Capabilities

  • 802.11ax (with backward compatibility)

  • Dual-Radio (2.4GHz, 5GHz)

  • 4x4:4 in 2.4GHz | 8x8:8 in 5GHz

  • 5.9 Gbps Peak Data Rate

  • Up to 25 dBm on 2.4GHz and 28 dBm on 5GHz

  • Integrated Antenna with 6 dBi Gain on Each Radio

  • IoT Radio (BLE/ZigBee)

Interfaces

  • 1x10GbE (PoE)

  • 1x10Gb SFP

Wireless

  • Auto Channel and Power Management

  • Fast Roaming (802.11r)

  • Passpoint 3.0

  • Advanced Radio Resource Management

  • Wi-Fi Certified EasyMesh®

  • Client Emulation

Networking

  • IPv4/IPv6

  • L2 Tunneling

  • Link Aggregation

Security

  • WPA3, OWE, PMF

  • WIDS and WIPS

  • Content Filtering

  • L2-L4 ACL

  • Dedicated Sensor Mode

  • Client Isolation

Management

  • On-prem/cloud controller

  • TIP OpenWiFi controller

Applications

Education

Auditoriums

High-capacity Wi-Fi for presentations, live streaming, interactive sessions, and audience engagement.

Retail

High Footfall Areas

High-performance Wi-Fi for fast digital payments and engaging shopping experiences.

Venues

Indoor Arenas

High-density Wi-Fi for immersive event experiences and real-time interactions.

Hospitality

Banquets

Wi-Fi solutions customized for conferences and social events, enhancing guest experiences and event efficiency.

Insights

Blog

Exploring the Role of Beamforming in Wireless Technology

In Wireless Communication and Signal Processing, Beamforming Stands as a Crucial...

Case Study

AAI Hyderabad Powers Airport Hospitality with Advanced Networking

High-Speed Indoor Wi-Fi and Secure Switching for Scalable Airport Hospitality…

Video

Unleashing the Power of Wi-Fi 6: 8x8 Indoor Dual Band AP

Explore the Future of Wireless Connectivity with In-Depth look at the 8x8 Indoor Dual-Band...

Frequently Asked Questions

Find answers to key questions about our Wi-Fi Access Points to
help you choose the right solution for your network

How does Wi-Fi 6 improve network efficiency for a high number of users?

Wi-Fi 6 is designed to handle a large number of connected devices more efficiently. With features like MU-MIMO and OFDMA, it allows the Access Point to communicate with multiple devices at once, rather than one at a time. This is particularly beneficial in high-density areas, as it reduces network congestion and improves per-user throughput.

How do I choose the right Access Point for a high-density environment like a stadium or a large auditorium?

For environments with a high density of users and devices, you need an Access Point with a high-capacity and advanced features to handle the traffic. The ion12xi_h2 is designed for this with its 8x8 MU-MIMO, high data rate, and support for up to 1024 concurrent clients. Its Wi-Fi 6 certification also ensures it is optimized for high-performance applications.

What is the benefit of having a centrally managed Access Point?

A centrally managed Access Point, like the ion12xi_h2, can be configured and managed remotely via a cloud or on-premise controller. This simplifies network management, especially for large-scale deployments, by allowing administrators to easily monitor, configure, and troubleshoot the network from a single location.

What are the benefits of using an Access Point?

Using an Access Point (AP) is an effective way to improve your Wi-Fi network. The key benefits are:

  • Extended Coverage: APs eliminate Wi-Fi dead zones, providing a strong, reliable signal throughout your entire home or office.
  • Improved Performance: By distributing the network load, APs reduce congestion, leading to faster speeds and more reliable connections for all your devices.
  • Scalability: You can easily add more APs as your network needs grow, making it simple to expand coverage and capacity.
  • Seamless Roaming: When configured in a mesh network, APs allow your devices to automatically switch to the strongest signal as you move around, providing an uninterrupted connection.

What does Wi-Fi 6 (802.11ax) mean, and is it a necessary feature?

Wi-Fi 6 (802.11ax) is the newest Wi-Fi standard. It's designed to make your network more efficient and handle a large number of connected devices at the same time. Yes, for most modern homes and all businesses, Wi-Fi 6 is an essential feature. While older Wi-Fi standards may be sufficient for a single device, they can struggle when multiple people are streaming video, gaming, or using multiple smart home devices at the same time. Wi-Fi 6 significantly improves performance in these high-density scenarios by providing a faster, more stable, and more reliable connection for every device on the network.
