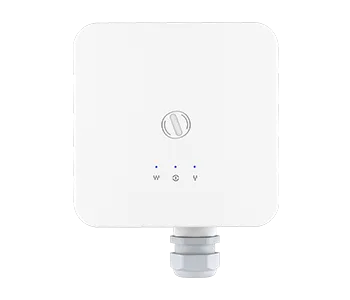

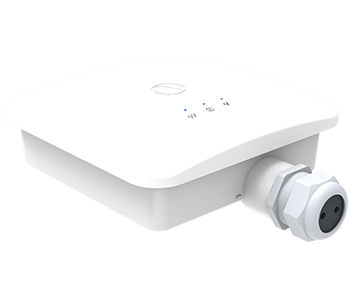

Wi-Fi 6 Outdoor Access Point | ion12xe_h2

Dual Band 4x4:4 Outdoor Access Point with Integrated Antenna (8 dBi)

Wi-Fi 6 Outdoor Access Point for
Powering High-Density Spaces

The ion12xe_h2 Wi-Fi 6 outdoor access point is engineered for high-density environments with 4x4:4 performance on both bands and external antennas for extended coverage.

This outdoor wireless access point ensures uninterrupted Wi-Fi in open stadiums, warehouses, metro stations, and urban mobility zones, powering immersive game-day experiences, enabling real-time inventory and logistics tracking in industrial facilities, supporting navigation and travel updates for commuters, and delivering fast, secure connectivity in parking areas for digital payments and surveillance.

Rugged and scalable, this Wi-Fi access point sets the standard for next-generation public Wi-Fi.

Radio Capabilities

  • 802.11ax (with Backward Compatibility)

  • Dual-Radio (2.4GHz, 5GHz)

  • 4x4:4 MIMO per Radio

  • 3.5 Gbps Gbps Peak Data Rate

  • Up to 30dBm Tx Power per Radio

  • Up to 25 dBm on 2.4GHz and 28 dBm on 5GHz

  • External Antenna (N-Type Connectors)

  • IoT Radio (BLE/ZigBee)

Interfaces

  • 1x10GbE (PoE)

  • 1x10G SFP+

Wireless

  • Auto Channel and Power Management

  • Fast Roaming (802.11r)

  • Passpoint 2.0

  • Advanced Radio Resource Management

  • Wi-Fi Certified EasyMesh®

  • Client Emulation

Networking

  • IPv4/IPv6

  • L2 Tunneling (EoGRE)

  • Link Aggregation

Security

  • WPA3, OWE, PMF

  • WIDS and WIPS

  • Content Filtering

  • L2-L4 ACL

  • Dedicated Sensor Mode

  • Client Isolation

Management

  • On-prem/cloud controller

  • TIP OpenWiFi controller

Applications

Industry

Warehouses

Continuous network access for the workforce and real-time inventory tracking and efficient logistics.

Mass Transit

Metro Stations

Fast, stable internet for hassle-free navigation and travel updates.

Urban Mobility

Car Parking Zones

Fast, secure connectivity for digital payments, navigation, and surveillance in parking zones.

Venues

Open Stadiums

Ultra-fast, widespread connectivity for an immersive game-day experience, crowd management, and seamless operations.

Insights

Case Study

High-Performance Wi-Fi Energizes India’s Largest Thermal Power Plant

NTPC Vindhyachal Transforms Operations with High-Capacity Wireless Infrastructure…

Case Study

How Delhi Enabled Free Public Wi-Fi at Scale

Bridging the Digital Divide Through Scalable Public Wi-Fi Network…

Video

Unleashing the Power of Wi-Fi 6: 8x8 Indoor Dual Band AP

Explore the Future of Wireless Connectivity with In-Depth look at the 8x8 Indoor Dual-Band...

Frequently Asked Questions

Find answers to key questions about our Wi-Fi Access Points to
help you choose the right solution for your network

What does "4x4" mean in the context of an Access Point?

In the context of an Access Point, "4x4" refers to the number of antennas used for transmitting and receiving data. Specifically, it means the device has four transmit antennas and four receive antennas for each radio band. This is a form of MU-MIMO (Multi-User, Multiple Input Multiple Output) technology, which allows the Access Point to transmit and receive data from multiple client devices simultaneously.

For the ion12xe_h2, the "4x4 [5 GHz] + 4x4 [2.4 GHz]" specification means it uses four spatial streams on both the 5 GHz band and the 2.4 GHz band, resulting in up to 8 streams of Wi-Fi 6 connectivity. This significantly boosts overall spectrum use, maximizes coverage, and optimizes per-user throughput, making it particularly effective in very high-density areas.

What are some common applications for outdoor access points?

Outdoor Access Points are essential for extending Wi-Fi coverage to large external areas. Common applications include:

  • Public Venues: Providing high-density Wi-Fi in stadiums, parks, and outdoor arenas.
  • Smart Cities: Powering public hotspots and supporting smart city infrastructure like smart lighting and sensors.
  • Transportation: Offering seamless connectivity at airports, railway stations, and transit hubs.
  • Commercial Use: Extending the network to outdoor seating areas at restaurants, hotel pools, and outdoor shopping centers.

What Wi-Fi challenges do warehouses face, and how do outdoor Access Points help?

Warehouses need continuous connectivity for real-time inventory tracking and logistics, but traditional Wi-Fi often struggles with coverage in large facilities and outdoor yards. Outdoor Access Points like the ion12xe_h2 deliver reliable Wi-Fi across the entire site, including loading docks and storage yards. This ensures seamless data transfer for handheld scanners and devices, enabling accurate inventory management and uninterrupted operations.

Why are outdoor Access Points important for metro stations and mass transit hubs?

Metro stations experience high commuter density and constant movement, which makes it difficult for traditional Wi-Fi to deliver stable, high-speed connectivity. Outdoor APs such as ion12xe_h2 support Wi-Fi 6 and up to 1024 concurrent clients, using MU-MIMO to maintain fast, reliable connections. This ensures commuters enjoy smooth access to navigation, travel updates, and online services, even in crowded environments.

How do outdoor access points improve connectivity in car parking zones?

Parking areas rely on secure Wi-Fi for digital payments, surveillance, and navigation systems. Standard networking equipment often fails due to exposure to dust, rain, and extreme temperatures. IP67-rated outdoor APs like the ion12xe_h2 are weatherproof and operate in extreme conditions (-40°C to 60°C). They provide reliable, secure Wi-Fi for payment terminals, navigation apps, and security cameras, with WPA3 encryption to protect sensitive data.
