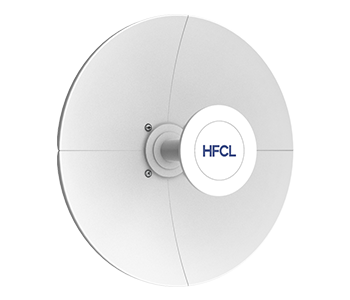

HF55-DPDISH-25 | 5GHz Dual Polarized Dish Antenna

High-Gain, Long-Distance Connectivity for Point-to-Point Applications

Specifications

The HF55-DPDISH-25 is a high-performance 5GHz dual-polarized parabolic dish antenna designed for long-distance point-to-point (P2P) communication. With a 25 dBi gain and a narrow 9° beamwidth in both horizontal and vertical planes, this antenna ensures a focused, high-quality signal transmission over long distances, making it perfect for scenarios where the master and slave devices are separated by considerable distances. The antenna supports MIMO (2x2) technology for improved signal reliability and performance.

  • Frequency Range: 4900–5900 MHz

  • Gain: 25 ± 0.5 dBi

  • VSWR: 1.5:1 (Max)

  • Beamwidth (H-Plane): 9° ± 0.5°

  • Beamwidth (E-Plane): 9° ± 0.5°

  • Polarization: Linear Horizontal & Vertical

  • Front-to-Back Ratio: > 30 dB

  • Cross Polarization: > 28 dB

  • Max Power Input: 100 Watts

  • Impedance: 50 Ohms

  • Connector Termination: 2 x N(M) with 1 mtr 0.141 semi-rigid extended cable

  • Lightning Protection: DC grounded

The HF55-DPDISH-25 provides uninterrupted, long-range connectivity between devices, offering stable, high-speed data transfer for P2P links, such as backhaul connections and remote communications.

Designed with dual polarization (horizontal & vertical), the antenna reduces signal interference, ensuring more reliable performance, particularly in environments with high network traffic or external interference.

With a galvanized steel reflector and weather-resistant finish, the antenna is built to endure harsh environmental conditions. The white powder-coated finish offers UV protection, ensuring that the antenna remains durable and performs optimally for extended periods.

This dish antenna is designed for easy outdoor installation, providing optimal signal coverage even in remote areas. The antenna comes with mounting hardware and is compatible with 2-inch poles, making it ideal for deployment in various environments such as industrial sites, telecom towers, and urban infrastructure.

  • Dimensions: Ø 450 mm

  • Gross Weight (with hardware): 2.5 ± 0.3 kg

  • Reflector Material: Galvanized Steel

  • Finish: White Powder Coated

  • Packing Dimensions: 14 x 14 x 6 inches

  • Mounting Style: Pole Mount

  • Mounting Pole Diameter: 2 inches

  • Mounting Adjustment: H-Plane ± 180°; V-Plane ± 15°

The HF55-DPDISH-25 dish antenna delivers optimal performance across the 5 GHz band, ensuring high-gain, low interference connectivity over long distances. Perfect for point-to-point communications where clear, stable connections are required for backhaul networks, remote data transfer, or video surveillance.

  • Frequency Range: 4900–5900 MHz

  • Gain: 25 ± 0.5 dBi

  • VSWR: 1.5:1 (Max)

  • Beamwidth (H-Plane): 9° ± 0.5°

  • Beamwidth (E-Plane): 9° ± 0.5°

  • Internal Diplexer: N/A

  • Port-to-Port Isolation: > 30 dB

  • Interband Isolation: > 40 dB

  • Max Power Input: 100 Watts

  • Impedance: 50 Ohms

  • Front-to-Back Ratio: > 30 dB

  • Cross Polarization: > 28 dB

  • Connector Termination: 2 x N(M) with 1 mtr 0.141 semi-rigid extended cable

  • Lightning Protection: DC grounded

  • Insertion Loss: 0.5 dB (typical)

  • Attenuation in Stopband: 40 dBm (min.)

Applications

Smart Cities

Providing seamless Wi-Fi coverage for urban management, including traffic control, surveillance, and public services.

Indoor/Outdoor Use

Versatile for both indoor environments like offices and small businesses, and outdoor setups like smart cities or public parks.

Industrial Networks

Delivering reliable coverage for industrial systems in factories, warehouses, and other rugged environments.

Public Spaces

Perfect for Wi-Fi networks in malls, stadiums, airports, and other high-traffic public spaces that need consistent connectivity.

Variants

HF55-DPDISH-23

IO 5 GHz Dual Polarized Dish Antenna,
23 dBi, with N(Male) connectors

HF55-DPDISH-25

IO 5 GHz UBR Dual Polarised Dish Antenna, 25 dBi, with N(Male) connectors

HF55-DPDISH-27

IO 5 GHz Dual Polarized Split Dish Antenna
27 dBi with external cable

HF55-DPDISH-29

IO 5 GHz Dual Polarized Split Dish Antenna
29 dBi with external cable

HF55-DPDISH-31-EXT

IO 5 GHz UBR Dual Polarised Dish Antenna, 31 dBi, extended temperature with radome

HF55-DPDISH-34-EXT

IO 5 GHz UBR Dual Polarised Dish Antenna, 34 dBi, extended temperature with radome
