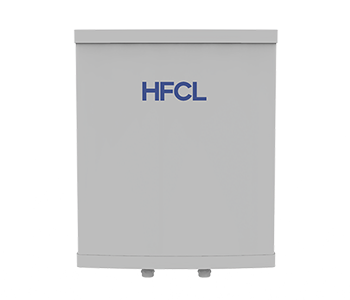

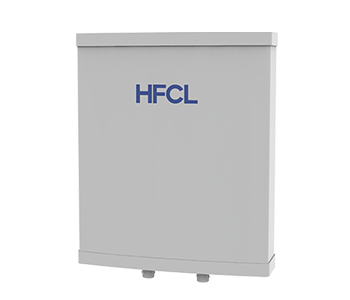

HFDB22-NM2SEC1530-17-BP | Sector Antenna for Access Points

High-Gain Sector Antenna for Enhanced Coverage with LTE Band 40 Rejection Filter

Specifications

The HFDB22-NM2SEC1530-17-BP is a high-performance sector antenna designed for use with Access Points to provide targeted, high-gain coverage in a specific sector. With 17 dBi gain and a 30° horizontal and 15° vertical beamwidth, this antenna delivers extended coverage distances, making it ideal for outdoor Wi-Fi networks and public spaces. The built-in LTE Band 40 rejection filter ensures minimal interference from mobile signals, enhancing the quality and stability of your Wi-Fi connection.

  • Frequency Range: 2400–2500 MHz (2.4GHz) / 5100–5900 MHz (5GHz)

  • Gain: 17±0.5 dBi (dual band)

  • VSWR: 1.5:1 (max)

  • Beamwidth: 30° Horizontal / 15° Vertical

  • IP65 Waterproof Rating

  • Temperature Range: -40°C to +55°C

The sector antenna provides high-gain signal coverage, ensuring that your network devices experience reliable Wi-Fi performance with extended range. Perfect for outdoor campuses, stadiums, and smart cities, the antenna enhances the performance of Wi-Fi Access Points by focusing signal strength in a specific direction for greater reach.

Designed for durability, the sector antenna is built to withstand harsh environmental conditions. With an IP65 rating, it is resistant to dust, water, and extreme weather. The antenna's UV-resistant PVC radome ensures longevity and reliable performance in challenging outdoor environments, making it ideal for urban infrastructure and industrial applications.

  • Waterproofing: IP65

  • Wind Resistance: Up to 200 km/h (survival)

  • Temperature Resistance: -40°C to +55°C

The sector antenna is equipped with pole mounting hardware for quick and easy installation. With an adjustable mounting angle of ±25°, you can optimize signal coverage to meet the specific requirements of your network. Compatible with 2-2.5 inch poles, this antenna is versatile and easy to deploy in various outdoor settings.

  • Mounting Style: Pole mount (2-2.5 inches)

  • Mounting Adjustment: ±25°

  • Weight: 3.5 kg (with bracket)

  • Dimensions: 350 x 300 x 65 mm

The HFDB22-NM2SEC1530-17-BP sector antenna delivers high-performance coverage across both 2.4 GHz and 5 GHz bands with optimal efficiency.

  • Frequency Range: 2400–2500 MHz (2.4 GHz) / 5100–5900 MHz (5 GHz)

  • Gain: 17±0.5 dBi (dual band)

  • VSWR: 1.5:1 (max)

  • Beamwidth (H-Plane): 30° ± 2°

  • Beamwidth (E-Plane): 15° ± 1°

  • Polarization: Horizontal & Vertical

  • Internal Diplexer: Yes (for 2.4 GHz & 5 GHz signals)

  • Port-to-Port Isolation: > 25 dB

  • Interband Isolation: > 40 dB

  • Maximum Power Input: 50 Watts

  • Impedance: 50 Ohms

  • Front-to-Back Ratio: > 25 dB

  • Cross Polarization: > 20 dB

  • Connector Termination: 2 x N(M) with 500 mm pigtail

  • Lightning Protection: DC grounded, withstands up to 20KVA

  • Insertion Loss: 0.5 dB (typical)

  • Attenuation in Stopband: 40 dBm (min.)

Applications

Smart Cities

Providing seamless Wi-Fi coverage for urban management, including traffic control, surveillance, and public services.

Indoor/Outdoor Use

Versatile for both indoor environments like offices and small businesses, and outdoor setups like smart cities or public parks.

Industrial Networks

Delivering reliable coverage for industrial systems in factories, warehouses, and other rugged environments.

Public Spaces

Perfect for Wi-Fi networks in malls, stadiums, airports, and other high-traffic public spaces that need consistent connectivity.
