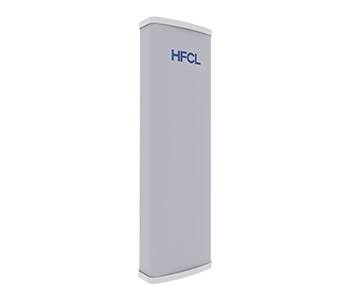

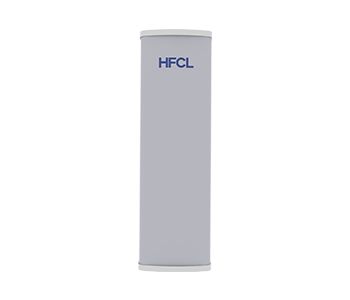

HFDB22-NM2SEC1530-17-BP | Sector Antenna for UBR

High-Gain Sector Antenna with LTE Band 40 Rejection Filter for Point-to-Multipoint Coverage

Specifications

The HFDB22-NM2SEC1530-17-BP is a high-performance sector antenna designed to provide long-range, high-gain coverage for point-to-multipoint (P2mP) network deployments. With a 17 dBi gain and a 30° horizontal and 15° vertical beamwidth, this antenna ensures targeted, efficient coverage in outdoor environments such as campuses, industrial areas, and remote locations. The built-in LTE Band 40 rejection filter ensures reduced interference from mobile signals, enhancing the stability and performance of your network.

  • Frequency Range: 2400–2500 MHz (2.4GHz) / 5100–5900 MHz (5GHz)

  • Gain: 17 ± 0.5 dBi

  • Beamwidth (H-Plane): 30° ± 2°

  • Beamwidth (E-Plane): 15° ± 1°

  • VSWR: 1.5:1 (Max)

  • Polarization: Horizontal & Vertical

  • Lightning Protection: DC grounded, withstands up to 20KVA

  • Waterproofing: IP65

This sector antenna is built for point-to-multipoint (P2mP) applications, ensuring high-gain coverage over long distances. It is ideal for outdoor wireless network deployments, providing reliable connections for backhaul networks, campuses, and smart cities.

The LTE Band 40 rejection filter minimizes interference from cellular networks, ensuring stable, high-performance connections for your Wi-Fi network, even in areas with high mobile traffic.

With an IP65 waterproof rating, this antenna is designed to withstand extreme outdoor conditions such as rain, snow, and dust. Its UV-resistant PVC radome ensures longevity, making it perfect for urban infrastructure and industrial applications.

The HFDB22-NM2SEC1530-17-BP sector antenna is engineered for outdoor deployment with robust construction and easy installation. Designed to endure harsh environmental conditions, it is suitable for a wide range of applications, from industrial sites to urban infrastructure. The antenna includes mounting hardware and is compatible with 2–2.5 inch poles.

  • Dimensions: 350 x 300 x 65 mm

  • Weight (with bracket): 3.5 ± 0.2 kg

  • Radome: UV-resistant PVC

  • Mounting Hardware: Hot-Dip Galvanized

  • Mounting Style: Pole mount (2–2.5 inches)

  • Mounting Adjustment: Azimuth ±180°, Elevation ±25°

The HFDB22-NM2SEC1530-17-BP sector antenna is designed for optimal performance across both 2.4 GHz and 5 GHz frequency bands, with built-in features to enhance signal quality and reduce interference. It delivers excellent coverage for point-to-multipoint wireless applications, ensuring stable and reliable performance for various outdoor network setups.

  • Frequency Range: 2400–2500 MHz (2.4 GHz) / 5100–5900 MHz (5 GHz)

  • Gain: 17 ± 0.5 dBi

  • Beamwidth (H-Plane): 30° ± 2°

  • Beamwidth (E-Plane): 15° ± 1°

  • Internal Diplexer: Yes (for 2.4 GHz & 5 GHz signals)

  • Port-to-Port Isolation: > 25 dB

  • Interband Isolation: > 40 dB

  • Maximum Power Input: 50 Watts

  • Impedance: 50 Ohms

  • Front-to-Back Ratio: > 25 dB

  • Cross Polarization: > 20 dB

  • Connector Termination: 2 x N(M) with 500 mm pigtail

  • Insertion Loss: 0.5 dB (typical)

  • Attenuation in Stopband: 40 dBm (min.)

  • Lightning Protection: DC grounded, withstands up to 20KVA

Applications

Smart Cities

Providing seamless Wi-Fi coverage for urban management, including traffic control, surveillance, and public services.

Indoor/Outdoor Use

Versatile for both indoor environments like offices and small businesses, and outdoor setups like smart cities or public parks.

Industrial Networks

Delivering reliable coverage for industrial systems in factories, warehouses, and other rugged environments.

Public Spaces

Perfect for Wi-Fi networks in malls, stadiums, airports, and other high-traffic public spaces that need consistent connectivity.

Variants

HF55-DPSEC90-17

IO 5 GHz UBR Antenna, Sector, 90° H, 7° V, 17 dBi, 2x2

HF55-DPSEC60-19

IO 5 GHz UBR Antenna, Sector, 60° H, 4° V, 19 dBi, 2x2
