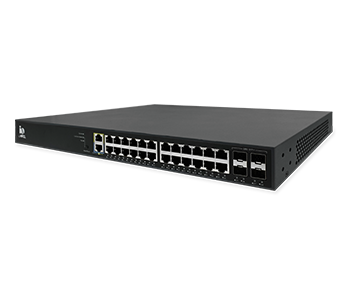

24-Port PoE+ L3 Managed  Switch | HSP-IO-24GE4XS-C3PA+

24x1 GE Access + 4x1/10G SFP+ Uplinks
24-Port PoE+ L3 Managed  Switch | HSP-IO-24GE4XS-C3PA+
24-Port PoE+ L3 Managed  Switch | HSP-IO-24GE4XS-C3PA+
24-Port PoE+ L3 Managed  Switch | HSP-IO-24GE4XS-C3PA+

24 Port Managed Switch for Scalable Enterprise Networks

The HSP-IO-24GE4XS-C3PA+ L3 managed ethernet switch delivers high-capacity, reliable connectivity for medium-density networks. With 24 Gigabit Ethernet ports, PoE+ support, and flexible uplinks, this managed switch streamlines enterprise, BFSI, railway, and triple-play deployments.

This 24-port PoE switch enables centralized access control, secure operations, and efficient network management, ensuring smooth performance for staff, customers, and critical systems.

Physical Interface

  • L3 PoE+ Managed Switch

  • 24x10/100/1000Mbps RJ45 Access Ports

  • 4x1/10G SFP+ Uplink Ports

  • Upto 128 Gbps Switching Capacity

  • Upto 95.23 MPPS full Duplex Throughput

  • 1x Console Port

  • 1x RJ45 Management Port

L3 Features

  • OSPFv2/v3

  • RIPv1/v2

  • IPv4/IPv6 Static Routes

  • Inter VLAN

  • DHCP Server, Relay and Client

L2 Features

  • VLAN - MAC Based, Protocol Based, Voice VLAN, Private VLANs

  • L2 Loop avoidance (STP/RSTP/MSTP)

  • ERPS (ITU G.8032)

  • IGMP v1/v2/v3 Snooping

  • 802.1q and QinQ

  • QoS - Classification, Marking, Policing, and Shaping

Design Parameters

  • 0⁰C to +55⁰C Operating Temperature

  • 1U Rack Mountable

  • Integrated Single AC Power Supply (100-240 VAC)

PoE

  • PoE Budget - 370W

  • Per Port PoE Configuration and Scheduling

  • Persistent PoE and Power Delay (to let the device boot)

  • Auto PoE Check and Reboot if Device does not Respond

Security

  • TACACS+ / RADIUS AAA

  • DHCP snooping, Dynamic ARP Inspection

  • Port Security, Sticky MAC, IP-MAC Binding

  • L2/L3/L4 ACL with Extended Features

Management

  • WEB GUI, CLI

  • SNMPv3, RMON, sFlow

  • Dual Stack (IPv4 and IPv6) Management

  • Ethernet OAM 802.3ah (CFM)

Applications

Railways

Operational Backbone

Supports secure, segmented connectivity across operational areas  ensuring reliable communication between critical infrastructure points.

24-Port PoE+ L3 Managed Switch HSP-IO-24GE4XS-C3PA+ for secure segmented connectivity and reliable communication across critical infrastructure

Corporate Networks

Team Infrastructure

Ideal for connecting workstations and internal systems enabling consistent performance and centralized access control across teams and roles.

24-Port PoE+ L3 Managed Switch HSP-IO-24GE4XS-C3PA+ for connecting workstations with centralized access control and consistent team performance

Triple Play

Voice, Video, Internet

Deliver voice, video, and internet services through a single, reliable connection — keeping services separate and easy to manage.

24-Port PoE+ L3 Managed Switch HSP-IO-24GE4XS-C3PA+ for unified delivery of voice, video, and internet with secure traffic separation

BFSI

Branch Access

Connects staff systems, ATMs, and support desks in branch offices — providing reliable and secure access to central systems from a single switch.

24-Port PoE+ L3 Managed Switch HSP-IO-24GE4XS-C3PA+ for secure branch access connecting ATMs, staff systems, and support desks

Variants

24-Port Non-PoE L3 Managed Switch | HSP-IO-24GE4XS-C3A+

Integrated Single AC Power Supply (100-240V AC)

Download

24-Port Non-PoE L3 Managed Switch | HSP-IO-24GE4XS-C2A+

Integrated Single AC Power Supply (100-240V AC)

Download

24-Port Non-PoE L3 Managed Switch | HSP-IO-24GE4XS-C3AH+

Hot Swappable, Dual AC Power Supply (100-240V AC)

Download

Insights

Case Study

HFCL Strengthens Bank Network with Managed Switches Across Branches

India’s Largest Bank Upgrades Network with Make-in-India Managed Switches...

Case Study

Pan-India Network Upgrade with Managed Switches for an Insurance Giant

Scalable, Reliable Switching to Power 8,000+ Branch Offices Across India...

Video

Robust Commercial and Industrial Managed Switches for Modern Enterprise

Power your Enterprise and Industrial Networks with IO by HFCL’s L2 and L3 Managed Switches...

Frequently Asked Questions

Explore frequently asked questions about our Network Switches
to understand capabilities, configuration, and compatibility

How does a 24 port PoE switch improve my network's performance?

A 24 port PoE switch switch is designed to eliminate network bottlenecks and deliver high-speed connectivity for business environments. With a high switching capacity, such as 128 Gbps, and a forwarding rate of up to 95.232 MPPS, it can handle heavy traffic volumes without performance degradation. The inclusion of 10G SFP+ uplink ports provides high-speed backbone connectivity to your network's core or servers, ensuring that your most critical data transfers are always fast and efficient. This guarantees smooth operation for high-bandwidth applications like video conferencing and large file transfers.

What security features are built into a managed switch?

A key advantage of a managed switch is its advanced security capabilities. Network administrators can use features like Virtual Local Area Networks (VLANs) to segment the network and isolate sensitive data, preventing unauthorized access between different departments or types of devices. Access Control Lists (ACLs)  define who can access specific resources and 802.1X Port Security authenticate devices before granting network access. These features help safeguard your infrastructure from internal and external threats, ensuring data integrity and compliance.

How does a PoE+ managed switch simplify deployment and save costs?

A managed switch with Power over Ethernet Plus (PoE+) simplifies network deployment by delivering both data and power over a single Ethernet cable. This eliminates the need for separate power outlets for devices like IP cameras, wireless access points, and VoIP phones, drastically reducing installation complexity and cost. With a substantial PoE budget, such as 370W, you can power multiple devices simultaneously without needing additional power injectors or electrical work, making it easy to expand your network.

Is a managed switch a Layer 3 switch?

Not all managed switches are Layer 3 switches, but most Layer 3 switches are managed. A Layer 2 managed switch offers management features within a single network. A Layer 3 managed switch includes all the features of a Layer 2 switch but also adds routing capabilities, allowing it to route data between different subnets, making it suitable for complex enterprise networks.

Do I need a managed switch for my small business?

Yes, a managed switch is highly recommended for growing businesses. While an unmanaged switch may work for very simple setups, a managed switch offers:

  • Scalability: Easily add more devices as your business grows.
  • Reliability: Ensure critical applications like VoIP and video conferencing run smoothly.
  • Security: Protect sensitive business data from unauthorized access.

Ultimately, a managed switch provides the control and stability required to prevent common network issues as your business expands.
