2 Gbps Point-to-Point UBR | ion8xle/ ion8xlx

Under Development

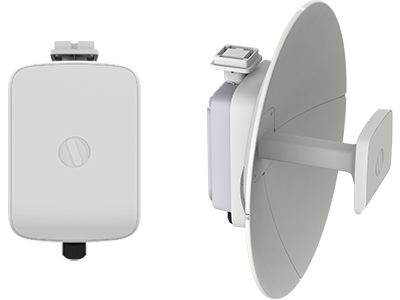

  • ion8xle: 5 GHz 2 Gbps High-Capacity UBR with External Antenna

  • ion8xlx: 5 GHz 2 Gbps High-Capacity UBR with Integrated Antenna

Ultra-High-Capacity Wireless Backhaul for Mission-Critical Networks

The ion8xle/ion8xlx series delivers ultra-high-capacity, carrier-grade point-to-point connectivity designed to meet the demands of modern networks. With 2 Gbps aggregate throughput across the 5 GHz spectrum, 2x2 MIMO, and 1024 QAM, these radios ensure exceptional spectrum efficiency and reliability.

The ion8xlx point to point radio, featuring integrated high-gain dish antenna, provides compact, targeted deployment for high-performance links, while the ion8xle UBR external antenna option offers flexible installation in diverse environments. With AI-powered interference mitigation, IP67-rated enclosures, 6 kV surge protection, and 48V PoE, these radios ensure reliable performance—ideal for 4G/5G backhaul, enterprise networks, ISPs, and industrial applications.

Radio Capabilities

  • 802.11ax

  • 5.1 to 5.9 GHz Frequency Band

  • 2x2 MIMO

  • Upto 1024 QAM Modulation

  • 2 Gbps Peak Data Throughput

  • 20/40/80/80+80 MHz Channel Width

  • Upto 24 dBm Tx Power

  • 23/25/27 dBi Integrated Antenna

  • 2x N Type Connectors for External Antenna

Hardware & Interfaces

  • 1 x 2.5 GbE

  • IEEE 802.3at, 48V Indoor/Outdoor AC/DC /SFP PoE

  • 6 kV Surge Protection

  • IP67 Protection

Wireless

  • Dynamic Channel Selection (DCS)

  • Dynamic Data Rate Selection (DDRS)

  • Automatic Tx Power Control (ATPC)

  • Automatic Channel Selection (ACS)

  • Hitless Channel & Modulation Change

  • Spectrum Analyser

  • Channel Bonding

Networking

  • 4 level Priority QoS

  • IPv4 / IPv6 Support

  • QinQ, Trunk, Access, Transparent and Management VLAN

  • Jumbo Frame up to 9000 Bytes

Security

  • AES-256

  • WPA2/3

  • MAC Based Access Control

Management

  • Web GUI

  • CLI

  • EMS (SNMPv2/v3)

Applications

Telco

Rural Expansion

Scalable, high-performance wireless backhaul for rapid 4G/5G network expansion and rural connectivity.

Enterprise

Critical Applications

Reliable, point-to-point connectivity delivering secure, high-speed performance for critical applications.

ISPs

Network Coverage

Cost-effective, high-capacity backhaul solutions to extend network coverage and improve service quality.

Industries

Tough Conditions

Robust wireless links with rugged hardware for factory automation, logistics.

Insights

White Paper

Best Practices for Unlicensed Band Radio (UBR) Installation

Reduce RF Interference and Maximize Wireless Backhaul & Last-Mile Performance...

Press Release

HFCL Secures ₹141 Crore Order from BSNL for Indigenous Backhauling Solutions

HFCL Secures Order to Supply Indigenously Designed UBR Solutions for BSNL's PAN India...

Video

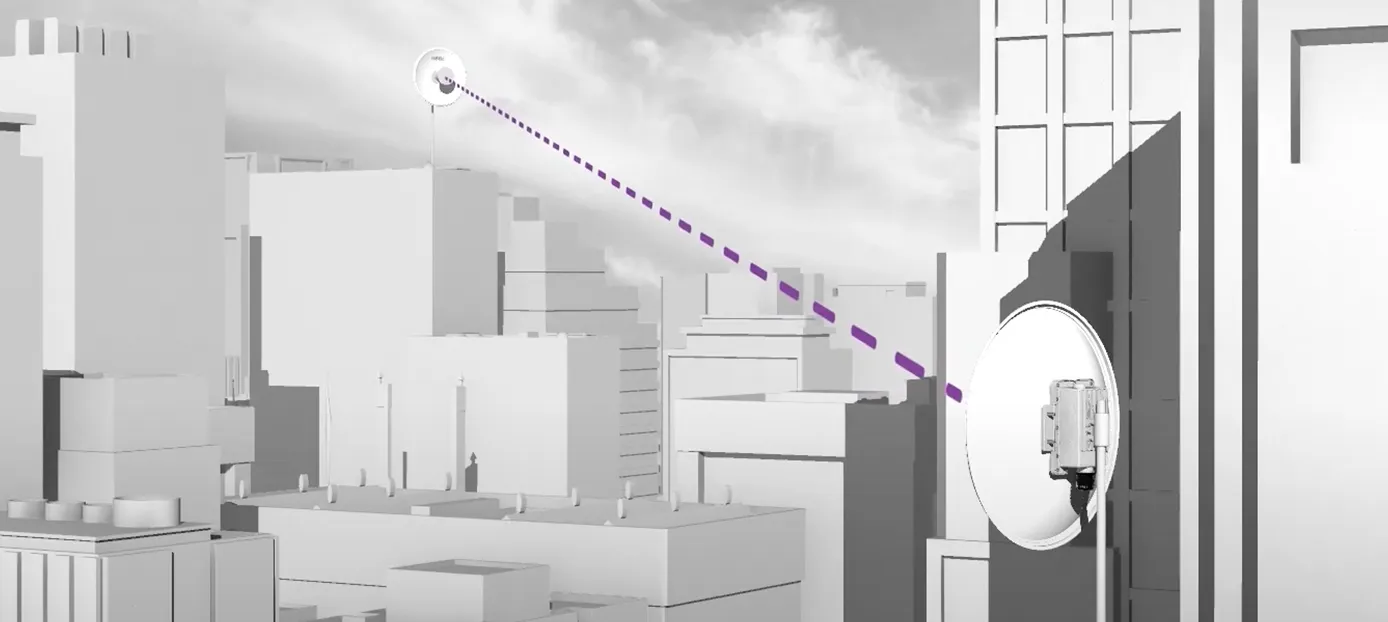

4G/5G Backhaul & Last Mile Connectivity

Experience Ultra-Fast, Reliable Backhaul with HFCL’s Next-Gen Unlicensed Band Radio...

Frequently Asked Questions

Get answers to key questions about our UBRs, covering use cases,
connectivity, and deployment benefits

What is the maximum achievable throughput and range for the ion8xle point to point UBR?

The ion8xle point to point UBR can achieve up to 2 Gbps of aggregate UL/DL throughput. The radio's performance is supported by an "effective wireless algorithm" and features like Dynamic Data Rate Selection (DDRS), which switches to optimal modulation based on site conditions. It supports a variety of channel bandwidths, including 20, 40, and 80 MHz, as well as flexible channel bonding for combinations up to 80+80 MHz to maximize throughput. The specific range is dependent on the configuration and line of sight, but the product is engineered for high-performance links.

How does the ion8xle point to point UBR mitigate interference in the unlicensed 5 GHz band?

The ion8xle point to point UBR uses Adaptive RF Technology, which combines AI algorithms with RF systems to optimize wireless communication performance in real-time. Key features include:

  • Automatic Channel Selection (ACS): Immediately switches to the best suitable channel in case of interference.
  • Dynamic Channel Selection (DCS): Changes channels without any service downtime when high interference is detected.
  • Dynamic Data Rate Selection (DDRS): Switches to the optimal modulation to maintain a stable link in the presence of site-specific interference.
  • Automatic Transmit Power Control (ATPC): Automatically adjusts transmit power based on the link distance to enhance signal quality

How is the ion8xle point to point UBR designed to lower deployment time and costs?

The ion8xle is built for ease of installation with a Plug-and-Play model. This allows for effortless deployment; a technician can simply input the IP address, and the radio will automatically fetch its configuration from the EMS server, leading to a quick and seamless setup. This feature, along with LED and buzzer support for alignment , helps to minimize field deployment costs as devices can be set up without the physical presence of a wireless expert.

Is the ion8xle high capacity UBR durable enough for challenging outdoor environments?

Yes, the ion8xle is built for extreme durability and is IP67 certified for outdoor ingress protection. This means it can sustain challenging weather conditions and extreme temperatures from -40°C to 55°C. It also supports wind loads up to 180 km/hour and includes surge protection of up to 4kV via its PoE port.

Does the ion8xle PTP UBR  integrate with existing network management and planning tools?

The ion8xle PTP UBR can be managed either as a standalone device via its GUI or through an appliance-based EMS (Element Management System). It also supports key features for integration and planning, such as GPS + GLONASS + IRNSS location tracking and a Dying Gasp feature that proactively monitors customer-end power outages.

What is a backhaul in technology?

A backhaul is the link that connects a remote network or a local sub-network to a main, high-capacity network. Think of it as the "road" that carries data traffic from smaller local streets (like your home Wi-Fi) to the main highway (the internet backbone). It's a critical component for any network that needs to connect multiple remote locations, such as cellular towers, Wi-Fi hotspots, or business branches.

Why is backhaul important?

Backhaul is arguably the most critical component of a wireless network because it determines the overall performance and reliability. Without a robust backhaul link, the entire network can become a bottleneck, leading to slow speeds, high latency, and dropped connections. A high-performance backhaul ensures that the end-user's experience is consistently excellent, making it a key factor in subscriber satisfaction and network profitability.

What is point-to-point wireless?

Point-to-Point wireless refers to any wireless technology that creates a dedicated, directional link between two locations. It's often used as a "fiber alternative" to provide high-speed, reliable connectivity over a distance without the expense and time of laying physical cable. Our P2P UBRs are a leading example of this, offering multi-gigabit speeds and low latency for mission-critical applications.
