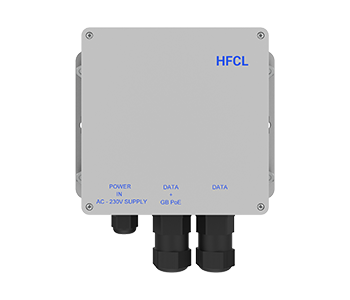

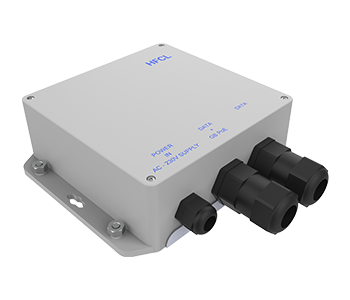

HF-POE20LS-AC/DC | Indoor PoE Injector

High Power Gigabit PoE+ Injector for Indoor Use with AC/DC
Power Supply

Specifications

The HF-POE20LS-AC/DC is a high-performance Gigabit PoE injector designed for indoor use. This device allows you to deliver both data and power over a single Ethernet cable, making it an ideal solution for powering and networking PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones. Compliant with IEEE 802.3af/at standards, this injector supports up to 30W of power output, ensuring reliable and efficient power delivery. It also incorporates full protection against overcurrent and overvoltage, safeguarding your connected devices from potential damage.

  • Supports 10/100/1000BaseT(X) for Data and Power

  • Input Voltage: 100-264 VAC (AC) & 36-75 VDC (DC)

  • Max. 20W Power Budget for 1 PDs Consumption

  • IP30 Rating

  • 0°C to 45°C Operating Temperature

Supporting input voltages of 100-264 VAC (AC model) or 36-75 VDC (DC model), this injector delivers a stable power supply to devices, while consuming only 2.5W when idle. With a 35W power budget, it can efficiently power PoE devices. The built-in overload current, overvoltage, reverse polarity, and short circuit protection ensure the safety of both the injector and connected equipment.

Featuring a metallic housing with an anti-corrosive powder coating, this PoE injector ensures durability and resistance to environmental factors such as humidity and dust. The IP30 rating provides protection against dust ingress, making it perfect for use in data centers, network racks, and other indoor installations that require a compact, reliable device.

The HF-POE20LS-AC/DC operates in temperatures ranging from 0°C to 45°C, with storage capabilities from -40°C to 85°C (-40°F to 185°F). It supports relative humidity levels between 5% and 95% (non-condensing), ensuring that it performs reliably in various indoor environments, from corporate offices to industrial setups.

Compliant with IEEE 802.3af/at (PoE and PoE+) standards, this injector ensures safe and efficient power delivery. LED indicators offer real-time status monitoring, helping with PoE management and providing visibility into device performance.

Applications

Critical Industrial Environments

Powering PoE devices like cameras and sensors in harsh industrial environments.

Smart Buildings

Supports PoE devices for smart lighting, HVAC systems, and security cameras.

Data Centers

Delivers reliable power and connectivity to network switches and servers.

Retail Environments

Enables digital signage, POS systems, and security cameras in commercial settings.
